Swivel joints

Swivel joints

Swivel joints will be used when you have to convey fluids from a fixed point to parts in relative motion and meets virtual all industrial applications. They are suitable for all kinds of products: liquid, gaseous, powdered, granular, pulpy id.

Swivel joints are also used in combination with hoses to eliminate kinking and twisting, and reduce hose wear.

Swivel joints offer total operational safety / reliability, combined with maximum service life.

HTT offers special versions for severe-service applications, particularly those in which corrosive, toxic, caustic or hightemperature products are being transferred.

Swivel joints can be customized to ensure they perform up to or exceed your expectations for your special application. HTT can offer a wide range of options such as: leakdetection port, PTFE compound lining, submerged – and jacketed executions id.

Applications

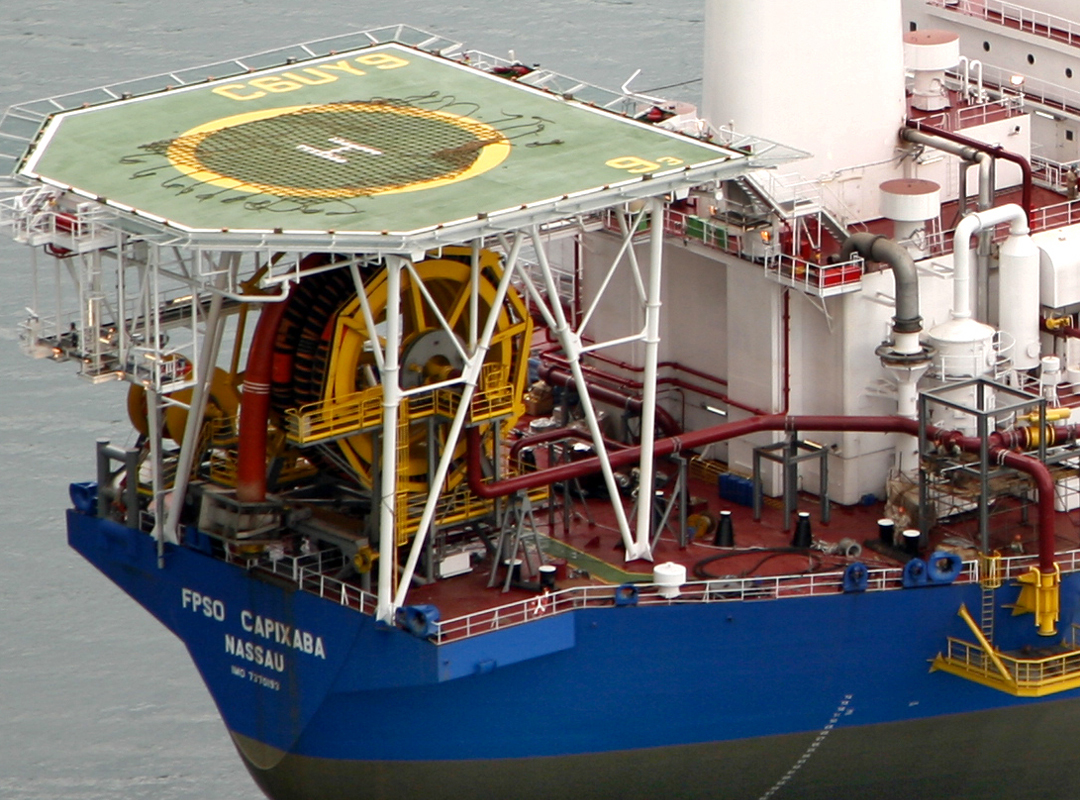

Hose reels
Loading- and unloadingarms
Hose loading systems
Hydraulic systems
Pneumatic systems
Pump test stands
Tank floating suctions
Tank raindrain systems
Rolling mill
Wastewater treatment systems
id.

Technical data

Sizes : from ¼” up to 40”
Operating pressure : from vacuum up to 2000 bar
Operating temperature : from – 60°C up to + 280°C
Special versions : from – 196°C up to 350°C
Bending moment : from 120 up to 84000 Nm

Materials

Carbon steel – 42 CrMo 4 ( DIN1.7225 ), St52.3
Stainless steel – 316Ti ( DIN1.4571 )
Aluminium
Hastelloy
Duplex
and other materials to customers specification

Configurations

Special versions

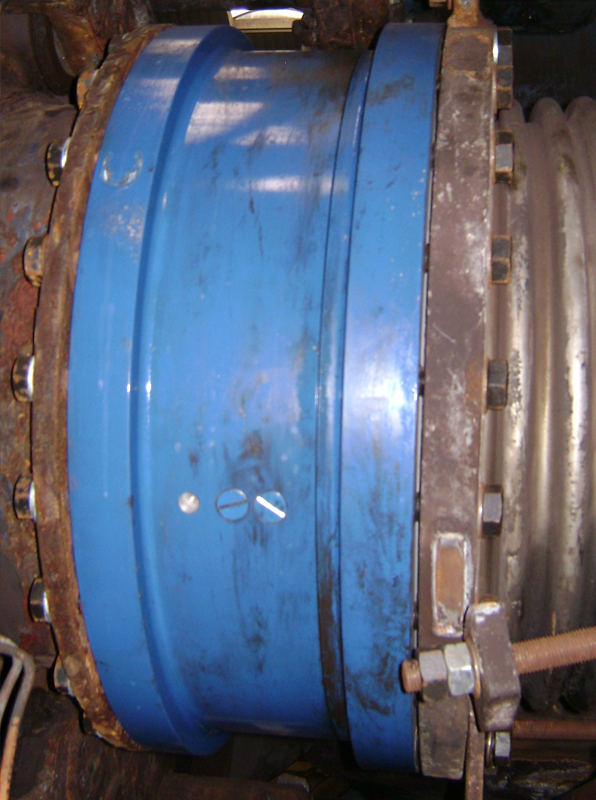

Examples of steel swivel joints

Examples of stainless steel swivel joints
