Flange chain connectors - HTT Industrial Systems

Flange chain connectors

Flange chain connectors

Flange chain connectors can be used for connecting pipes and/or hoses, fastening of constructional elements and as a mechanical coupling.

Flange chain connectors are suitable for all kinds of products: liquid, gaseous, powdered, granular, pulp etc. They are utilized in a wide range of applications, in many different industries.

HTT Industrial Systems BV offer special versions for severe applications, particularly those where products are being transferred under high loads such as axial moments, radial moments, high torques, vibrations, pulsating pressures or operating temperatures.

Application areas

Piping systems
Hydraulic systems
Mechanical engineering
Food industry
Petrochemical & chemical
Steelworks
Paper/pulp industry
Moulding systems
Equipment manufacturing
Cryo technology
Vacuum technology
Bio technology
Process technology
Nuclear technology
Laboratory technology
Fire fighting systems
id.

Technical data

Sizes : from ¼“ up to 40“
Operating pressure : from vacuum up to 900 bar
Operating temperature : from -60°C up to +320°C
Special executions : from -273°C up to +800°C
Seals : PTFE, Viton, EPDM, NBR and other materials to customers specification
Materials : aluminium, stainless steel, carbon steel, synthetic material

Special versions : to customer specification

Advantages

Short assembling time
Good accessibility
Less space for installation
Low weight
No bolt holes required, eliminating any alignment problems
Easy installation in difficult & restricted areas
No bolts or nuts required
Clamping mechanism, by handwheel (no tools required)
Special safety locking device
Mechanical operation, available for operating in dangerous areas
Opening with remnant pressure is possible
Even clampingforce around the circumference
A full range of metal seals available which are often re-usable (depending on original torque settings.)
Antimagnetic operations available

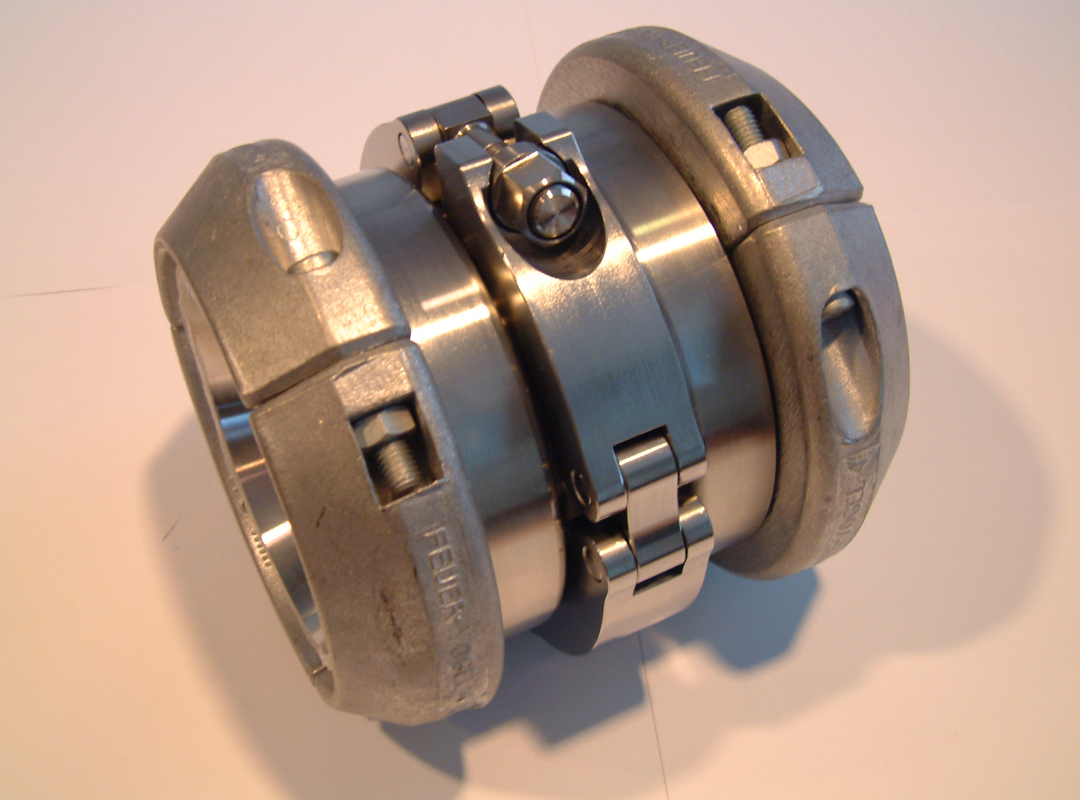

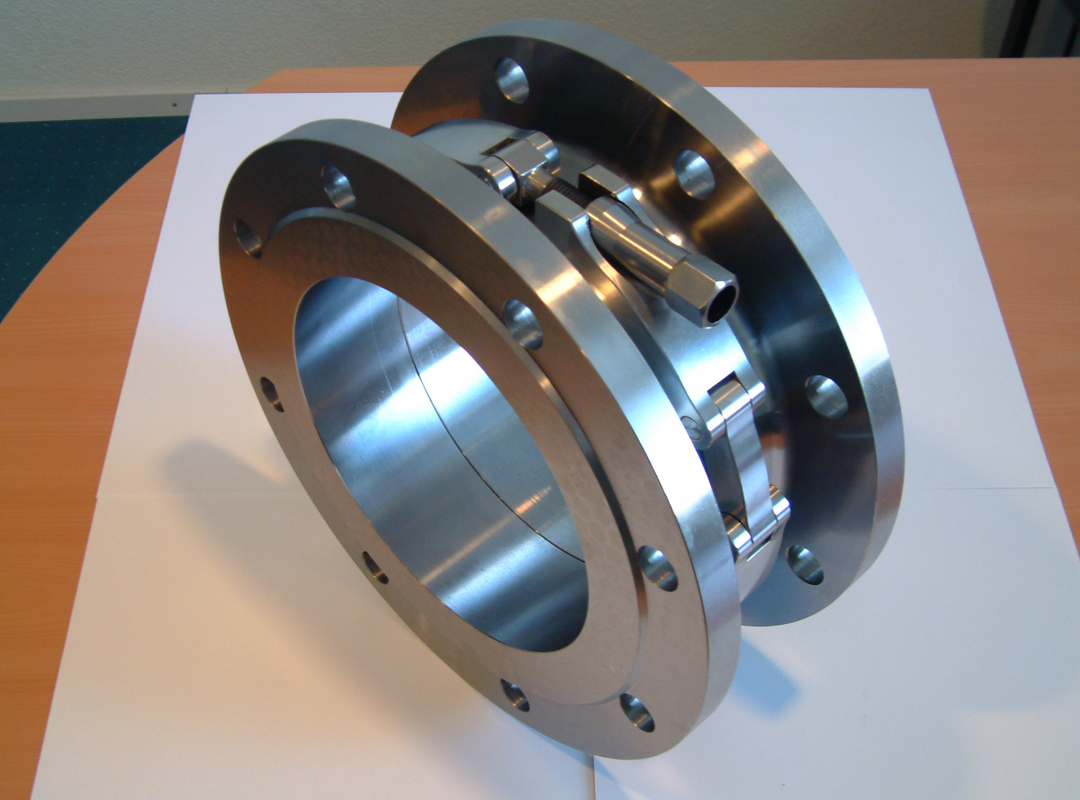

Examples of flange chain connectors
